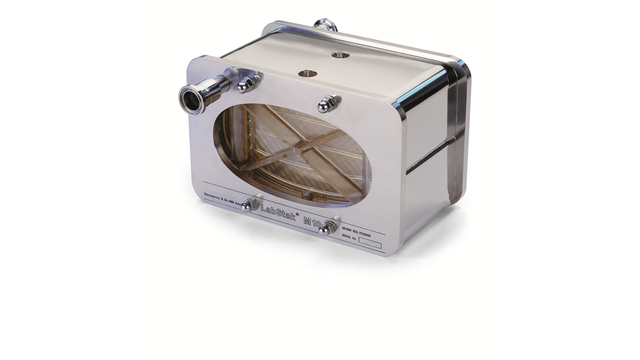

LabStak™ M10
The LabStak™ M10 module is the smallest and most compact of the Alfa Laval units for cross-flow membrane filtration. This versatile unit is an ideal tool for educational purposes and for research and development work. The Alfa Laval LabStak™ M10 module can be used with the complete range of Alfa Laval flat sheet membranes available for ultrafiltration and microfiltration.
Handy and flexible
With a membrane area of only 336 cm² the Alfa Laval LabStak™ M10 module is the smallest unit in the range of laboratory equipment offered by Alfa Laval. The design is simple, but the results obtained are comprehensive and reliable.
The Alfa Laval LabStak™ M10 module is an extremely reliable, yet easy to use, unit for process development and optimization, scaling-up as well as training purposes. The flexibility to install and test two membranes simultaneously makes it an efficient tool for initial membrane selection.

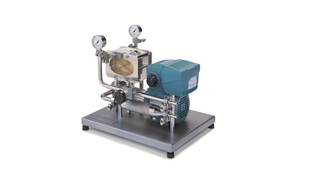

Alfa Laval LabUnit M10
The Alfa Laval LabUnit M10 is a fully integrated system comprising an Alfa Laval LabStak™ M10 module complete with necessary pump, valve, heat exchanger and instrumentation.
Benefits
- membrane area of only 336 cm²
- easy exchange of membranes
- transparent plate for observation of cross-flow
- simultaneous test of two different membrane types
- high operating temperature (80°C)
- small test media volume (1-3 litres)
- hold-up volume only 57 ml
- flow pattern similar to that of larger modules
- all components in compliance with FDA and ECC regulations, allowing use within food and pharmaceutical processing applications
Cum funcţionează:
Diagrama de flux a unei instalații tipice
O unitate de placă și cadru este proiectată cu canale deschise pe suprafața membranei. Fluxul de alimentare /retentatul curge prin acestea.
Membrana în sine este susținută de plăci perforate cu numeroase fante care permit permeatului să se adune și să fie scos din unitate prin intermediul tuburilor de colectare a permeatului.
Unități plăci și cadru folosesc membrana însăși, ajutată de inele de blocare sau benzi, pentru a sigila alimentarea/ retentatul să se amestece în canalele de permeat. Acest lucru previne, de asemenea, scurgeri de la placa de stivă.
Self
Alfa Laval offers a wide range of small-scale and pilot laboratory plants based on either plate-and-frame modules or full-fit spiral elements - or a combination of both.
