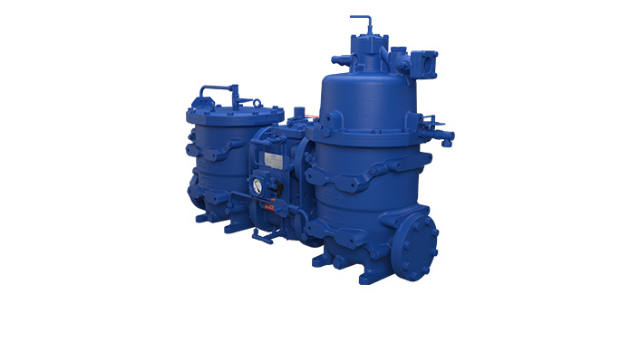

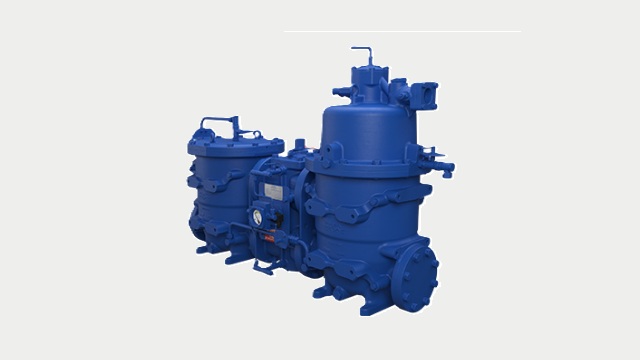

Moatti 290 filter
With original Atrium 2.0 technology, Alfa Laval Moatti 290 automatic self-cleaning filters will adapt to meet your requirements with precision. The Eliminator configuration meets all your medium-speed diesel engine lubrication oil requirements, ensuring that you consistently meet ISO 16889 and ISO 4406 standards. For every commercial marine vessel class there is a Moatti 290 filter available to treat fuel oil, lubrication oil and hydraulic control oil.
Maximum engine protection, minimal engine wear
- Compact and versatile backflushing filter easy to install, operate and maintain
- Reliable and genuine very fine filtration
- Reduced total cost of ownership
- Complete reuse of the backflushed oil in integrated diversion chamber
- Up to three-fold lube oil life extension
Biofuel-ready
Moatti 290 fuel oil filters are suitable for use with biofuels of the following type:
- Fatty Acid Methyl Esters (FAME), compliant with EN 14214
- Hydrotreated Vegetable Oils (HVO)
- Blends of the above with ISO 8217–compliant hydrocarbon fuels
How it works
Based on Alfa Laval Atrium technology
Extensive filter area is critical for fine filtration, for example at the very fine grade of 6 μm required for hydraulic control oil. Using the original Alfa Laval Atrium technology, filters in the Alfa Laval 290 filter range provide a tremendous increase in filtering surface – with virtually no impact on pressure drop.
This is possible through the special patented shape of the Atrium filter elements, as well as their smaller and highly optimized flow distribution system. Atrium technology creates the market’s best ratio between the available filtering surface and the total footprint/volume of the filter.
Watch the video to learn more
Fine filtration expert corner
Your engine’s last line of defence is critical
The Alfa Laval Moatti filter stands guard right before fuel enters the engine, removing harmful particles - especially cat fines - when it matters most.
Engine manufacturers and industry experts recommend a self-cleaning, automatic filter with at least 10-micron filtration, installed as close to the engine as possible for maximum protection. With Moatti’s continuous, pressure-driven backflushing, you get reliable protection of your engine with the solution trusted by professionals.
Listen to our expert in the video to learn more
Services
Alfa Laval’s Service and Support
We offer a complete portfolio of service products to support your equipment and operations, from setup and training to maintenance, upgrades, and beyond. Each service product is designed to help you improve reliability, ensure compliance, and get the most out of your investment.
Alfa Laval Marine Service
Worldwide and 24/7, Alfa Laval Marine Service is your path to greater uptime, optimized performance and true peace of mind. Our network is always on call, and our service offering brings reliability, efficiency and compliance throughout your equipment's lifetime.
24/7 Service & Support
Contact us anywhere, anytime:
+46 4636 7700
marine.service@alfalaval.com
Our global network of service centres centres, distribution centres and field service engineers is always ready at assist you.
Application examples
The Alfa Laval Moatti 290 self-cleaning filter range covers rigorous oil filtration needs in several industries and applications.
Power industry
- Engine power
- Combined heat and power
Marine industry
- Fuel supply
- Lube oil filtration
- Fuel oil filtration
- Hydraulic control oil filtration
Transport industry
- Fuel cleaning
- Oil cleaning
