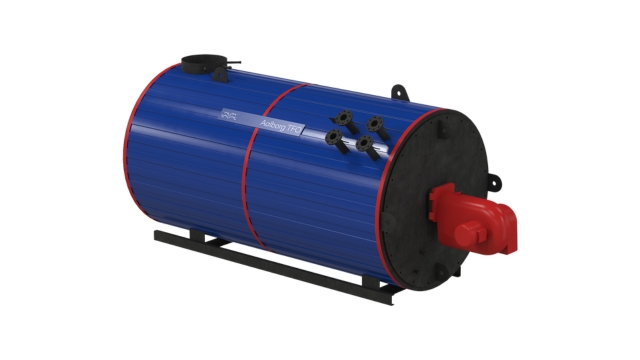

Aalborg TFO

Alfa Laval Aalborg TFO is an exceptional thermal fluid heating solution from Alfa Laval, specifically designed to provide efficient and reliable heating for a wide range of processes and systems on marine vessels. Leveraging the decades of application experience, it offers original and innovative solution for thermal fluid systems, such as: Thermal oil, hot water or water / glycol.

阿法拉伐Aalborg TFO导热油系统

Our thermal fluid heating system is proven for today, ready for tomorrow

  • Sustainable thermal fluid heating solutions based on decades of application experience
  • Innovative waste heat recovery technologies for improved vessel energy efficiency
  • Fuel savings mean reduced CO2 and improved EEDI, EEXI and CII
  • Extensive product development and research capabilities at Alfa Laval Test &Training Centre

In addition to engineering and production of the thermal fluid heater units, which we deliver complete with burner and control system, Alfa Laval Aalborg supplies the following equipment:

  • Circulation
  • Valves
  • Expansion tanks
  • Dump coolers
  • Tank cleaning heaters
  • Heat exchangers
  • Electrical heaters
  • Unfired steam boilers
  • Spare parts

Safety and control systems

Alfa Laval Aalborg's thermal fluid systems can be supplied with an in-house developed PLC-operate control panel. Through the 12inch touch screen of this control panel, the operator has a clear overview of the complete heating system and its status. The different kind of field-bus connections for communication mean that  connecting a second touch screen and/or connecting the system to a central alarm is very simple.



Features and benefits

  • Constructed with a double coil system of large bare tubes
  • Removable top plate provide access for inspection and cleaning of the coils
  • Vertical or horizontal execution
  • Thermal fluid cooled flue gas bottom plate option
  • Low thermal fluid pressure drop
  • Three-pass flue gas configuration
  • Heavy insulation jacket

Design data

  • Capacity: 100 - 15,000 kW
  • Design pressure: 10/13 bar(g)
  • Thermal fluid design temperature: 280ºC

Cum funcţionează:

Thermal fluid systems

Thermal fluid systems on ships are used to supply heat for various kinds of heat consumers like fuel oil tanks, separators and fuel heaters and to heat all types of cargo such as bitumen, oil products and chemicals.

Also tank washing systems, steam generators and central heating systems are typical fields of application.
In thermal fluid systems, the produced heat is transferred to the ship’s heat consumers by means of a transfer fluid, usually a mineral oil.



Pumps circulate the fluid through the closed system, passing the fuel oil fired heaters and economisers. The fluid remains in liquid phase during the entire process enabling high temperatures with the lowest pressures possible.

The simplicity of the system and the preserving nature of the oil makes this a very reliable and low maintenance solution. The system is easy to operate and due to the system design the thermal oil has a long lifetime.

Advantages for shipyards

    • Fast and professional proposals
    • Complete engineered system solutions
    • More than 30 years of experience in thermal fluid technology
    • In-house production of core products
    • Simple system with a limited number of components to be installed
    • Delivery of all necessary system components
    • Compact heaters with a small footprint
    • Small heating surface in the tanks
    • Extensive list of references

Advantages for shipowners

  • High temperatures with low pressures
  • Fully automatic safety system
  • Low fuel consumption
  • Easy operation
  • Low maintenance costs
  • Long life of thermal fluid due to the optimal system design
  • Innovative capabilities of the complete Aalborg Industries Group
  • Integrated PLC control and Energy
  • Management System (EMS)
  • Global After Sales support network
